Safe-Spirals can be laser-marked with your brand or logo text for you to further increase your brand awareness. It is also possible to add also your company colours to differentiate your company from your competitors.

Note

These laser-marked spirals are always produced after order.

Safe-Spiral BRANDED Features

  • Printing is possible on black spirals
  • Also possible with colour edges
  • Available for sizes OD 16 – 140mm
  • Minimum order quantity (MOQ) is 600 meters per order or per colour when this option is wished
  • MOQ can comprise of different sizes

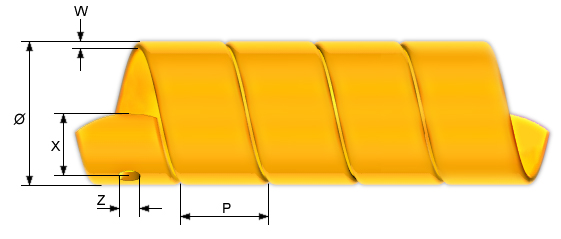

Spiral measurem 2
Nominal outer / inner ØRecommended usage range
Hose diameter mm / approx. inch
Roll lengthWeight average kg / mWall W mmPitch
P mm
Hole Ø
Z mm
16 / 13.4mm
(ID ~0.52”)
13 – 18
0.51 – 0.71”
25m0.061.312-
20 / 16.0mm
(ID ~0.63”)
16 – 22
0.63 – 0.87”
25m0.092.0207
25 / 20.6mm
(ID ~0.81”)
20 – 27
0.78 – 1.06”
25m0.152.2217
32 / 27.0mm
(ID ~1.06”)
27 – 36
1.06 – 1.42”
25m0.192.5227
40 / 34.6mm
(ID ~1.36”)
34 – 44
1.34 – 1.73”
25m0.302.724-
50 / 43.2mm
(ID ~1.70”)
43 – 55
1.69 – 2.16”
25m0.403.4307
63 / 55.6mm
(ID ~2.19”)
55 – 67
2.16 – 2.64”
25m0.653.737-
75 / 66.2mm
(ID ~2.60”)
66 – 80
2.60 – 3.15”
20m0.734.44210
90 / 80.2mm
(ID ~3.16”)
80 – 98
3.15 – 3.86”
20m1.204.94510
110 / 99.0mm
(ID ~3.90”)
99 – 115
3.90 – 4.53”
15m1.765.55010
125 / 113.2mm
(ID ~4.46”)
113 – 130
4.45 – 5.12”
12m2.055.952-
140 / 127.0mm
(ID ~5.00”)
125 – 155
4.92 – 6.10”
10m2.506.55510

Coils

Safe-Spirals are packed in boxes suitable for 120 x 80 cm Euro-pallets.

Outer Diameter (OD)Length
16mm – 20mm 25m
25mm – 50mm25m and 50m
40mm, 63mm25m
75mm, 90mm20m
110mm15m
125mm12m
140mm10m
