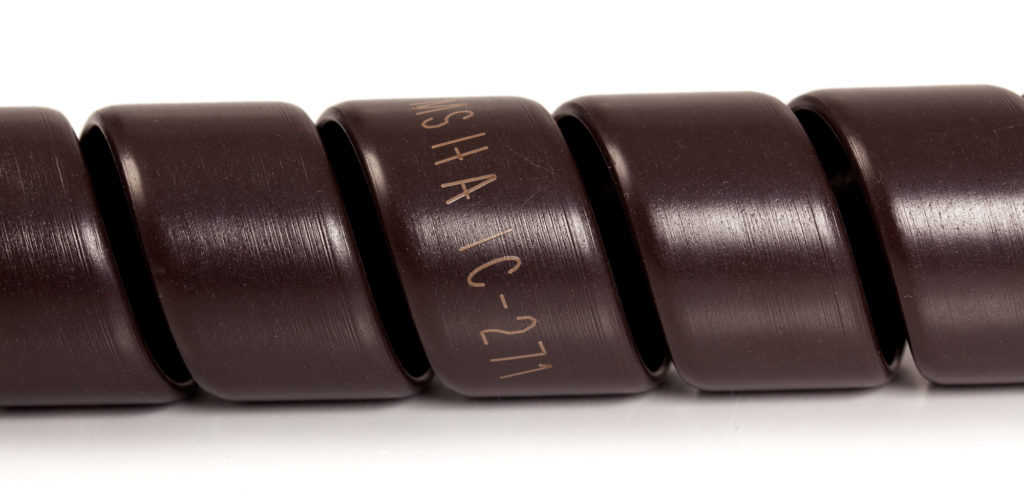

Safe-Spiral MINE + is flame retardant and permanently antistatic (”FRAS”), making it best suitable for protection against mechanical abrasion of hydraulic hoses in underground mining machinery and mining appliances.
Safe-Spiral MINE + is accepted as Flame-Resistant Solid Product taken into Mines with Acceptance No. MSHA IC-271 by the Mine Safety and Health Administration. According to UL-94 (standard for Safety of Flammability of Plastic Materials) Safe Spiral MINE + scored the top V-0 classification.
Note
Safe-Spiral MINE + is not a stock item but produced after order. Delivery time: 4–5 weeks from order.
Safe-Spiral MINE + Features
- HD polyethylene with a conductive thermoplastic compound
- Flame resistivity has been improved further with different ingredients to decelerate ignitability and burning
- Produced by double extrusion
- Protect hydraulic and pneumatic hoses against abrasion, shocks and general
wearing and therefore prolongs the life of your hoses - Tolerate both frost and heat
- Resistant to acids, oils and solvents
- Easy to install
Available sizes:
Available in outer diameters from 16 mm to 110 mm.
Available colours:
Brownish grey
| Nominal outer / inner Ø mm | Recommended range Hose diameter mm | Safeplast article no. | Roll length | Weight average kg / m | Wall mm | Pitch mm |
|---|---|---|---|---|---|---|
| 16 / 13.4 | 13 – 18 | 016R25MINE+ | 25m | 0.06 | 1.3 | 12 |
| 20 / 16.0 | 16 – 22 | 020R25MINE+ | 25m | 0.12 | 2.0 | 20 |
| 25 / 20.6 | 20 – 27 | 025R25MINE+ | 25m | 0.17 | 2.2 | 21 |
| 32 / 27.0 | 27 – 36 | 032R25MINE+ | 25m | 0.22 | 2.5 | 22 |
| 40 / 34.6 | 34 – 44 | 040R25MINE+ | 25m | 0.32 | 2.7 | 24 |
| 50 / 43.2 | 43 – 55 | 050R25MINE+ | 25m | 0.55 | 3.4 | 30 |
| 63 / 55.6 | 55 – 67 | 063R25MINE+ | 25m | 0.72 | 3.7 | 37 |
| 75 / 66.2 | 66 – 80 | 075R20MINE+ | 20m | 0.90 | 4.4 | 42 |
| 90 / 80.2 | 80 – 98 | 090R15MINE+ | 15m | 1.09 | 4.9 | 45 |
| 110 / 99.0 | 99 – 115 | 110R10MINE+ | 10m | 1.60 | 5.5 | 50 |
Available only in coils
| Diameter | Length |
|---|---|
| 16 mm | 25 m |
| 20 mm | 25 m |
| 25 mm | 25 m |
| 32 mm | 25 m |
| 40 mm | 25 m |
| 50 mm | 25 m |
| 63 mm | 25 m |
| 75 mm | 20 m |
| 90 mm | 15 m |
| 110 mm | 10 m |
