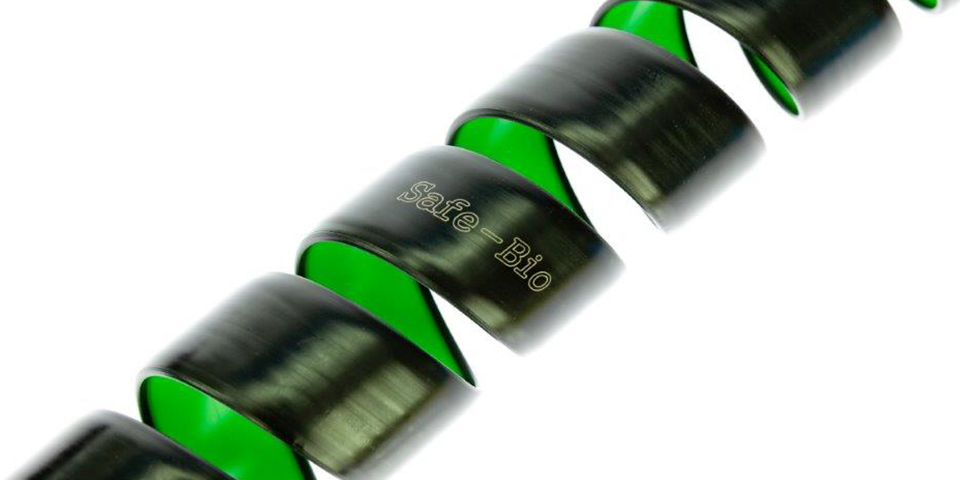

Safe-Spiral BIO

Since the concern about the wellbeing of our planet is growing, we have accepted the challenge to create more sustainable products. As a result, we designed the Safe-Spiral BIO – a hose guard that is made from bio-based plastics.

The material for Safe-Spiral BIO comes from sugarcane, which is refined to ethanol and further processed to polyethylene. The sugarcane binds carbon dioxide to itself while it’s growing, so the carbon emission is balanced in the production process.

Safe-Spiral BIO is produced by double extrusion. It has all the same features as our standard Safe-Spiral.

Safe-BIO spiral can also be used as Wear Indicator –spiral like Safe-Spiral ABRA. It has black surface and green interior.

Safe-Spiral BIO is available in OD from 16 mm to 110 mm.

Lengths: available only in coils.

Safe-Spiral BIO is not a stock item but produced after order.

Material: High Density Polyethylene

Nominal outer / inner Ø	Recommended usage range Hose diameter mm	Safeplast article no. for coils	Coil length	Weight average kg/m	Wall W mm	Pitch P mm
16 / 13.4 mm	13 - 18	016R25BIO	25 m	0.06	1.3	12
20 / 16.0 mm	16 - 22	020R25BIO	25 m	0.11	2.0	20
25 / 20.6 mm	20 - 27	025R25BIO	25 m	0.17	2.2	21
32 / 27.0 mm	27 - 36	032R25BIO	25 m	0.23	2.5	22
40 / 34.6 mm	34 - 44	040R25BIO	25 m	0.29	2.7	24
50 / 43.2 mm	43 - 55	050R25BIO	25 m	0.41	3.4	30
63 / 55.6 mm	55 - 67	063R25BIO	25 m	0.55	3.7	27
75 / 66.2 mm	66 - 80	075R20BIO	20 m	0.88	4.4	42
90 / 80.2 mm	80 - 98	090R20BIO	20 m	1.20	4.9	45
110 / 99.0 mm	99 - 115	110R15BIO	15 m	1.6.1	5.5.	50

Coils

Safe-Spirals are packed in boxes suitable for 120 x 80 cm Euro-pallets.

Diameter	Length
16 - 63 mm	25 m
75, 90 mm	20 m
110 mm	15 m

Sugarcane plays the hero in the new, eco-friendly and recyclable Safe-Bio Spiral
